Ships in 1 - 3 daysUltraSafe 40A Industrial Battery Charger

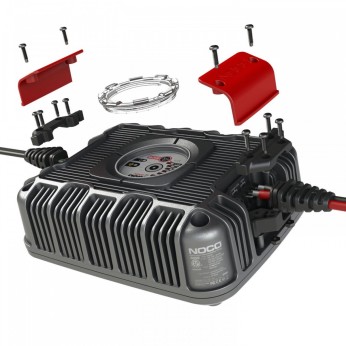

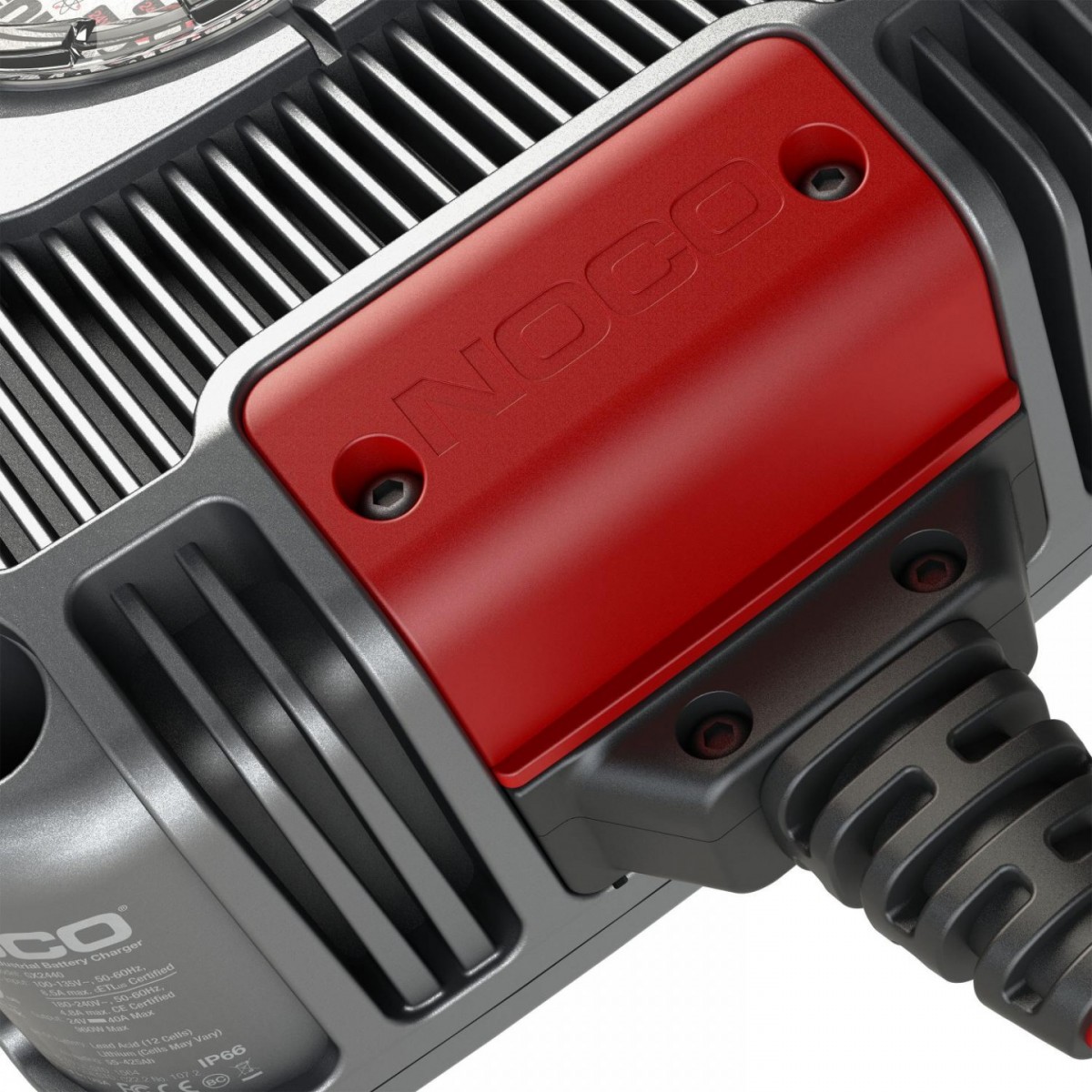

The GX2440 is a high frequency, high efficiency industrial battery charger for electric vehicles such as golf cart, scissor lift, wheel jack, floor treatment machine or utility vehicle. It represents the latest technology for fast and efficient battery charging with multiple charging functions at the push of a button. Its universally adaptable design allows it to be used with replaceable AC and DC cables. It is designed for all types of deep cycle lead-acid and lithium-ion batteries. It is also suitable for on-board and off-board applications.
Technical specifications.
What's in the box
AC Input Voltage
100-240V, 50-60Hz
Power< br>960W (Max)
Battery capacity
For lead-acid and lithium-ion batteries up to 425 Ah.
Efficiency
~92%
Rated IP
IP66< br>
AC Cord Length
76 inches
DC Cord Length
76 inches
Weight
13.2 lbs
Warranty
2.5 Year Warranty< br>
Warranty (months): | 30 | |
Line Voltage (V): | 100 - 240 | |
Frequency (Hz): | 50 - 60 | |
Operating Temperature (C): | -20 - 50 | |
Voltage 24V: | Yes | |
Charging current in 24V mode (Ah): | 40 | |
Ability to charge a liquid electrolyte accumulator: | Yes | |
Ability to charge a lithium battery: | Yes | |
Min/Max Charge Capacity Capacity in Ah in 24V mode: | From 55Ah up to 425Ah | |
Maintainability Min/Max Capacity in Ah in 24V state: | All types of batteries | |
Consumption (Watts): | 960 | |
Efficiency at 120VAC: | 92% | |
Efficiency at 230VAC: | 92% | |
Short circuit protection: | Yes | |
Open circuit protection: | Yes | |
Overheat protection: | Yes | |
Overload protection: | Yes | |
Spark protection: | Yes | |
Reverse polarity protection: | Yes | |
Weight (kg): | 5.99 | |
Overall length (mm): | 275 | |
Overall Width (mm): | 215 | |
Total height (mm): | 100 | |
DC Cable Length (mm): | 1930 | |
AC Cable Length (mm): | 1930 | |
Insulation: | IP66 |
Description
UltraSafe 40A Industrial Battery Charger
The GX2440 is a high frequency, high efficiency industrial battery charger for electric vehicles such as golf cart, scissor lift, wheel jack, floor treatment machine or utility vehicle. It represents the latest technology for fast and efficient battery charging with multiple charging functions at the push of a button. Its universally adaptable design allows it to be used with replaceable AC and DC cables. It is designed for all types of deep cycle lead-acid and lithium-ion batteries. It is also suitable for on-board and off-board applications.
Technical specifications.
What's in the box
AC Input Voltage
100-240V, 50-60Hz
Power< br>960W (Max)
Battery capacity
For lead-acid and lithium-ion batteries up to 425 Ah.
Efficiency
~92%
Rated IP
IP66< br>
AC Cord Length
76 inches
DC Cord Length
76 inches
Weight
13.2 lbs
Warranty
2.5 Year Warranty< br>
Technical Specifications
Warranty (months) | 30 | |
Line Voltage (V) | 100 - 240 | |
Frequency (Hz) | 50 - 60 | |
Operating Temperature (C) | -20 - 50 | |
Voltage 24V | Yes | |
Charging current in 24V mode (Ah) | 40 | |
Ability to charge a liquid electrolyte accumulator | Yes | |
Ability to charge a lithium battery | Yes | |
Min/Max Charge Capacity Capacity in Ah in 24V mode | From 55Ah up to 425Ah | |
Maintainability Min/Max Capacity in Ah in 24V state | All types of batteries | |
Consumption (Watts) | 960 | |
Efficiency at 120VAC | 92% | |
Efficiency at 230VAC | 92% | |
Short circuit protection | Yes | |
Open circuit protection | Yes | |
Overheat protection | Yes | |
Overload protection | Yes | |
Spark protection | Yes | |
Reverse polarity protection | Yes | |
Overall length (mm) | 275 | |
Overall Width (mm) | 215 | |
Total height (mm) | 100 | |
Weight (kg) | 5.99 | |
DC Cable Length (mm) | 1930 | |
AC Cable Length (mm) | 1930 | |
Insulation | IP66 |
