Ships in 1 - 3 daysBattery Charger 1 A, Battery Maintainer, and Battery Desulfurizer (Charger)

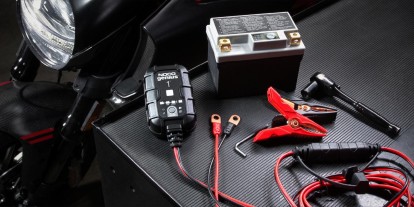

We present to you the new GENIUS1, one of the most powerful, high energy efficiency, with the highest performance, and compact chargers. The GENIUS1 is a 6-volt and 12-volt battery charger, battery maintainer, and desulfurizer rated at 1 A for lead-acid batteries used in the automotive and marine industries, and for deep-cycle batteries, including open-type batteries, gel, adsorbed electrolyte (AGM), and closed type, plus Li-ion batteries.
Technical specifications
What's in the box
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Temperature storage: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95%, non-condensing
Charge
Current : 1 A DC
Voltage: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Open Type, Gel, Closed Type, CA (Maximum Starting Ampere Measurement), EFB (Enhanced Open Type, AGM (absorbed electrolyte), Lithium
Capacity range: Up to 30 ampere-hours
Maintenance: All battery sizes
Power
Consumption: 15 Watt (max. )
Efficiency: 85% (120VAC) / 83% (230VAC)
Protection
IP Rating: IP65
Safety
Short Circuit: Yes
Open Circuit: Yes
Overheating: Yes
Overload: Yes
Spark Protection: Yes
Reverse Polarity: Yes
Size
Height: 3.5 inches (89mm)
Width: 2.3 inches (58mm)
Depth: 1.3 inches (33mm)
Weight : 0.77 lbs (0.35kg)
Cable Management
DC Cord Length: 107 inches (272 cm)
DC Cord Diameter: 18 AWG
DC Fuse Dimensions: Micro 2 A Blade Fuse
AC Cord Length: N/A
AC Cord Diameter: N/A
Oil, Gas, Grease, Water, Chemical, UV radiation, abrasion resistance
Warranty
3 year warranty
Warranty (months): | 36 | |
Line Voltage (V): | 120 - 240 | |
Frequency (Hz): | 50 - 60 | |
Operating Temperature (C): | -20 - 40 | |
Storage temperature (C): | -30 - 60 | |
Relative humidity: | From 0% to 95% without condensation | |
Voltage 6V: | Yes | |
Voltage 12V: | Yes | |
Charging current in 6V state (Ah): | 1 | |
Charging current in 12V state (Ah): | 1 | |
Ability to charge a liquid electrolyte accumulator: | Yes | |
Ability to charge a lithium battery: | Yes | |
Min/Max Charge Capacity Capacity in Ah at 6V state: | Up to 30Ah | |
Min/Max Charge Capacity Capacity in Ah in 12V mode: | Up to 30Ah | |
Maintainability Min/Max Capacity in Ah at 6V state: | All types of batteries | |
Maintainability Min/Max Capacity in Ah at 12V state: | All types of batteries | |
Consumption (Watts): | 15 | |
Efficiency at 120VAC: | 85% | |
Efficiency at 230VAC: | 83% | |
Short circuit protection: | Yes | |
Open circuit protection: | Yes | |
Overheat protection: | Yes | |
Overload protection: | Yes | |
Spark protection: | Yes | |
Reverse polarity protection: | Yes | |
Weight (kg): | 0.35 | |
Total depth (mm): | 33 | |
Overall Width (mm): | 58 | |
Total height (mm): | 89 | |
Length of DC cable and clamps (mm): | 2690 | |
DC Wire Size (AWG): | 18 | |
DC fuse size (AMP): | 2 | |
Insulation: | IP60 |
Description
Battery Charger 1 A, Battery Maintainer, and Battery Desulfurizer (Charger)
We present to you the new GENIUS1, one of the most powerful, high energy efficiency, with the highest performance, and compact chargers. The GENIUS1 is a 6-volt and 12-volt battery charger, battery maintainer, and desulfurizer rated at 1 A for lead-acid batteries used in the automotive and marine industries, and for deep-cycle batteries, including open-type batteries, gel, adsorbed electrolyte (AGM), and closed type, plus Li-ion batteries.
Technical specifications
What's in the box
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Temperature storage: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95%, non-condensing
Charge
Current : 1 A DC
Voltage: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Open Type, Gel, Closed Type, CA (Maximum Starting Ampere Measurement), EFB (Enhanced Open Type, AGM (absorbed electrolyte), Lithium
Capacity range: Up to 30 ampere-hours
Maintenance: All battery sizes
Power
Consumption: 15 Watt (max. )
Efficiency: 85% (120VAC) / 83% (230VAC)
Protection
IP Rating: IP65
Safety
Short Circuit: Yes
Open Circuit: Yes
Overheating: Yes
Overload: Yes
Spark Protection: Yes
Reverse Polarity: Yes
Size
Height: 3.5 inches (89mm)
Width: 2.3 inches (58mm)
Depth: 1.3 inches (33mm)
Weight : 0.77 lbs (0.35kg)
Cable Management
DC Cord Length: 107 inches (272 cm)
DC Cord Diameter: 18 AWG
DC Fuse Dimensions: Micro 2 A Blade Fuse
AC Cord Length: N/A
AC Cord Diameter: N/A
Oil, Gas, Grease, Water, Chemical, UV radiation, abrasion resistance
Warranty
3 year warranty
Technical Specifications
Warranty (months) | 36 | |
Line Voltage (V) | 120 - 240 | |
Frequency (Hz) | 50 - 60 | |
Operating Temperature (C) | -20 - 40 | |
Storage temperature (C) | -30 - 60 | |
Relative humidity | From 0% to 95% without condensation | |
Voltage 6V | Yes | |
Voltage 12V | Yes | |
Charging current in 6V state (Ah) | 1 | |
Charging current in 12V state (Ah) | 1 | |
Ability to charge a liquid electrolyte accumulator | Yes | |
Ability to charge a lithium battery | Yes | |
Min/Max Charge Capacity Capacity in Ah at 6V state | Up to 30Ah | |
Min/Max Charge Capacity Capacity in Ah in 12V mode | Up to 30Ah | |
Maintainability Min/Max Capacity in Ah at 6V state | All types of batteries | |
Maintainability Min/Max Capacity in Ah at 12V state | All types of batteries | |
Consumption (Watts) | 15 | |
Efficiency at 120VAC | 85% | |
Efficiency at 230VAC | 83% | |
Short circuit protection | Yes | |
Open circuit protection | Yes | |
Overheat protection | Yes | |
Overload protection | Yes | |
Spark protection | Yes | |
Reverse polarity protection | Yes | |
Overall Width (mm) | 58 | |
Total height (mm) | 89 | |
Total depth (mm) | 33 | |
Weight (kg) | 0.35 | |
Length of DC cable and clamps (mm) | 2690 | |
DC Wire Size (AWG) | 18 | |
DC fuse size (AMP) | 2 | |
Insulation | IP60 |
